Project #01
Biman Biogas plant

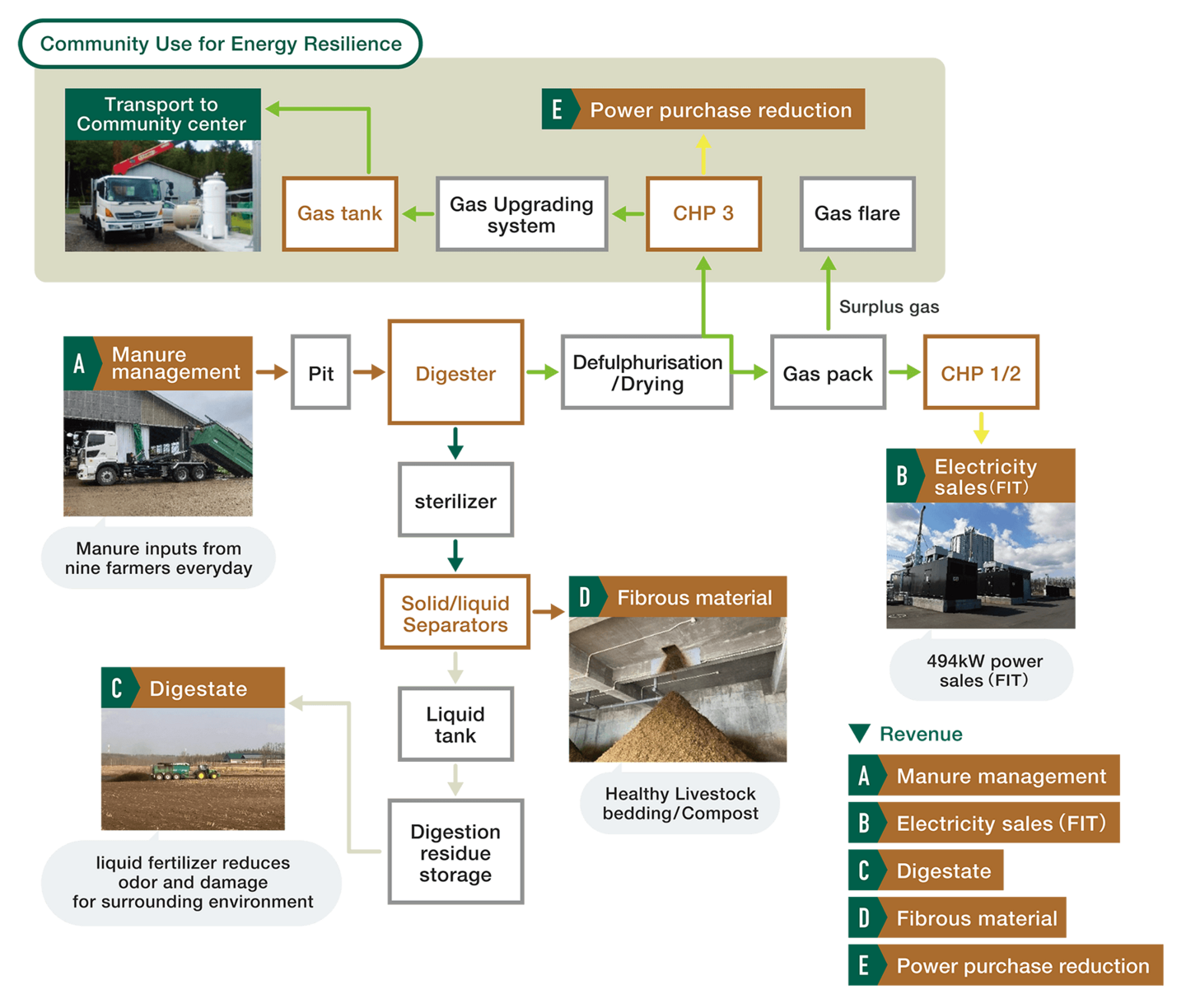

A large scale biogas plant, founded by nine farmers in 2019, accepts 160t of dairy cow manure and generates power of 12,000kWh per day. Digestate is processed to produce liquor and a fibrous material. Liquor is used as a liquid fertilizer and a fibrous material is used for healthy cow bed. FlowBI system allows plant staffs to monitor and analyze total working condition every hour, which leads to robust and reliable operation.
Biman Biogas plant

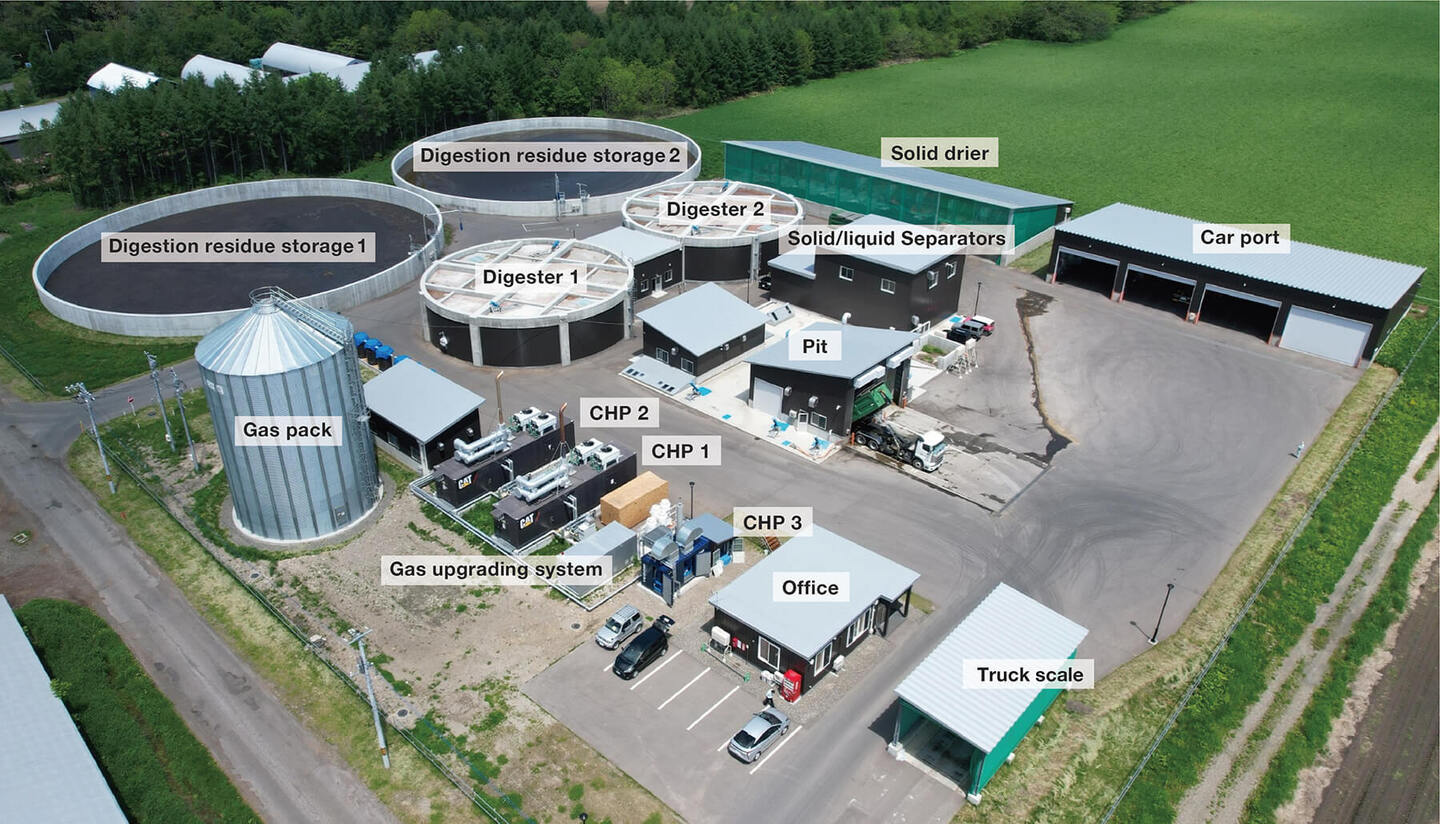

Bird eye view

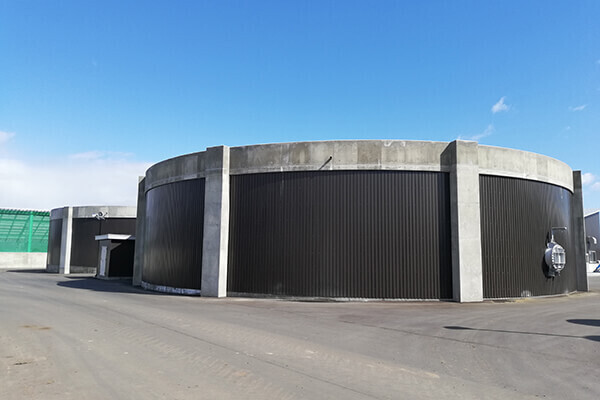

Digester

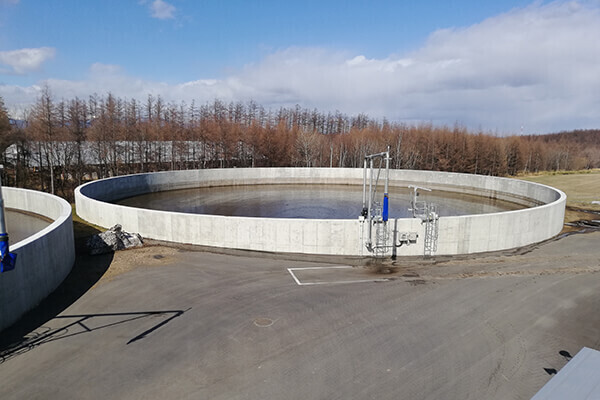

Digestate residue storage

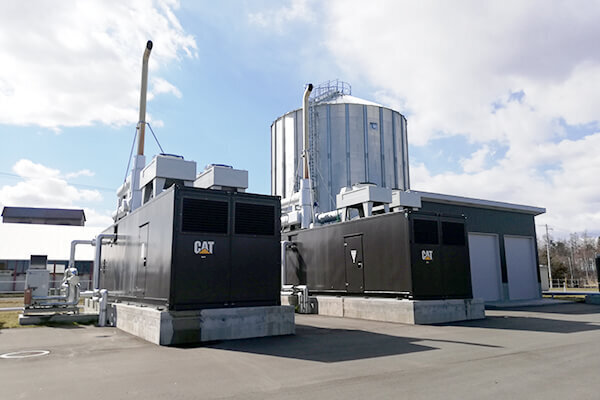

CHO 1, 2 for FIT

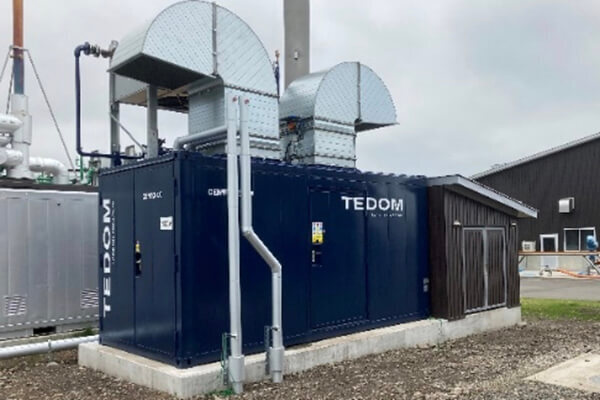

CHO 3 for self-consumption with blackout start option

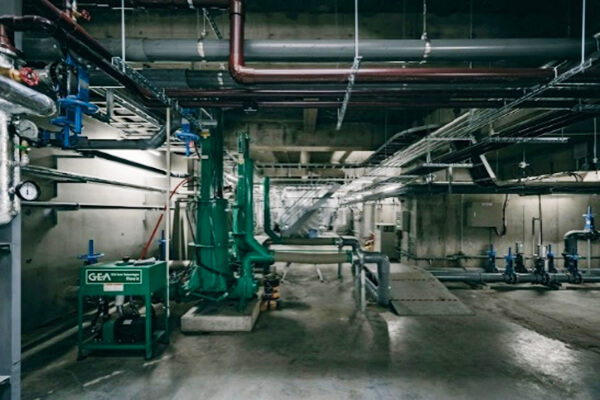

Under ground pit

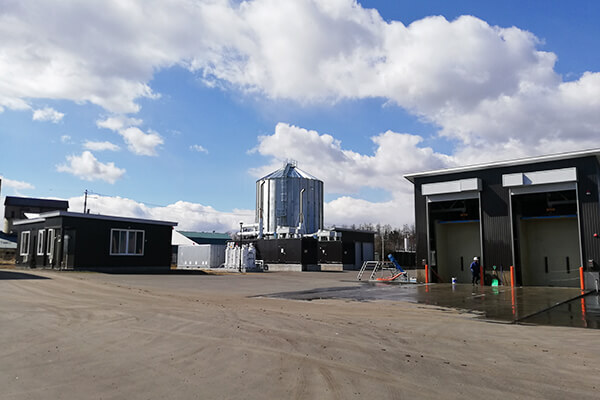

Wide-angle view
Information
| Name | Biman Biogas Plasnt |
|---|---|
| Inputs/Temp. | Dairy cow manure/ Middle temperature fermentation |
| Operating company | Tokachi Shimizu Biomass Energy Inc. |
| Owner | Nine farmers and Tokachi Shimizu Agri. Coop |
| Address | 〒089-0242 97, Biman-west22sen, Shimizu, Kamikawa, Hokkaido |
| Employee | Seven( 5 Drivers, 1 officer, 1 plant coordinator) |
| Construction | Maezawa Industries, Inc |
| Operation from | June, 2019 |
Facilities
| Pit | 918.0㎥ |
|---|---|
| Digester | 2,906㎥×2 |
| Digestion residue storage | 10,825㎥×2 |
| Solid drier | 648㎥ |
| CHP | CHP 1,2 400kW×2台 |
| Electricity sales (FIT) | 494kW |
